Nittobo's modified cross section chopped strands are high-performance chopped strands that use modified cross section fiber developed using Nittobo's proprietary technology. In contrast to the round cross section of regular glass fiber, the cross section of modified cross section fibers is oval. Because of this shape, these chopped strands exhibit diverse characteristics as base materials for injection molding, providing higher liquidity, dimensional stability, and tensile strength.
Modification ratio: Ratio of horizontal length of an oval cross section to its vertical length
Circle
Oval
Oval
Strength of molded products
An oval cross section fiber is stronger than a round cross section fiber.

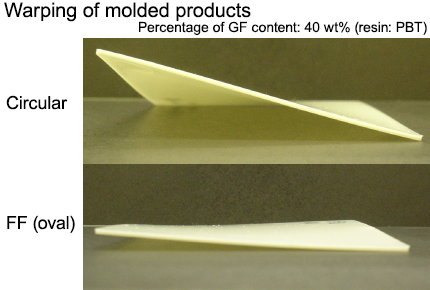

Dimensional stability
Because they are less anisotropic, these chopped strands enable manufacture of less warped and twisted molded products.
List of products
| Product code | Cut length (mm) | Modification ratio | Treatment | Applicable resin |
|---|---|---|---|---|
| CSG 3PA-810 | 3 | 4 | Silane-based | PA |
| CSG 3PA-820 | 3 | 4 | PA・PP・PPO・PC・PPS | |
| CSG 3PA-830 | 3 | 4 | PET・PBT・AS・ABS・PC・PPS | |
| CSG 3PL-810 | 3 | 2 | PA | |
| CSG 3PL-830 | 3 | 2 | PET・PBT・AS・ABS・PC・PPS |
* The modification ratio refers to the ratio of horizontal length of an oval cross section to its vertical length.
